Developed the new technology, process and equipment for 1.5Gwh line and duplicates to 10Gwh rapidly
長循環、高安全、溫升低
long cycle life、Higher safety、Low Temperature Rise

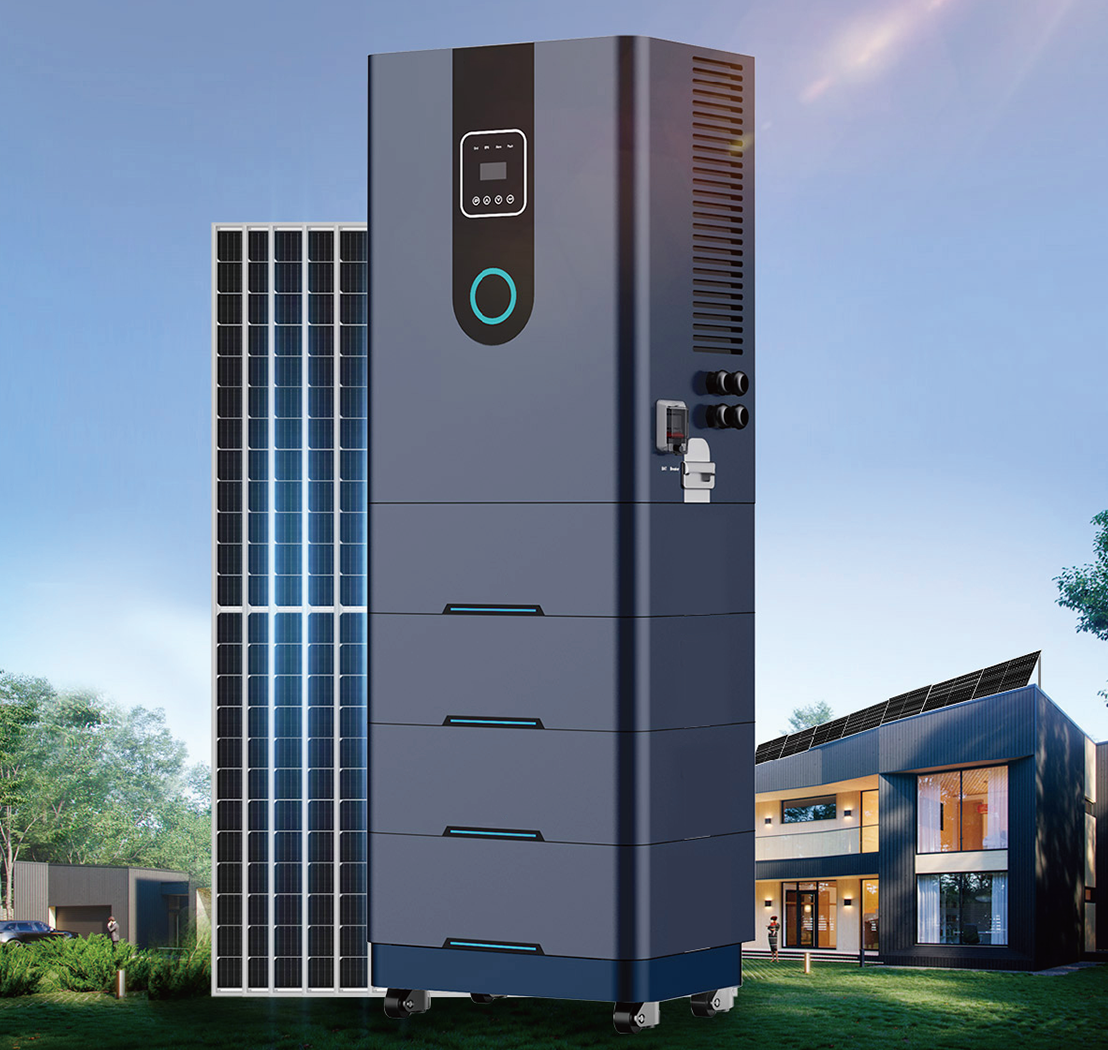

Portable/household/business sites ESS
E-motor/E-bike/ Electric tricycle
AGV，Robot、Power tools
PERFORMANCE DATA
|
型號/特點 Model/Feature |

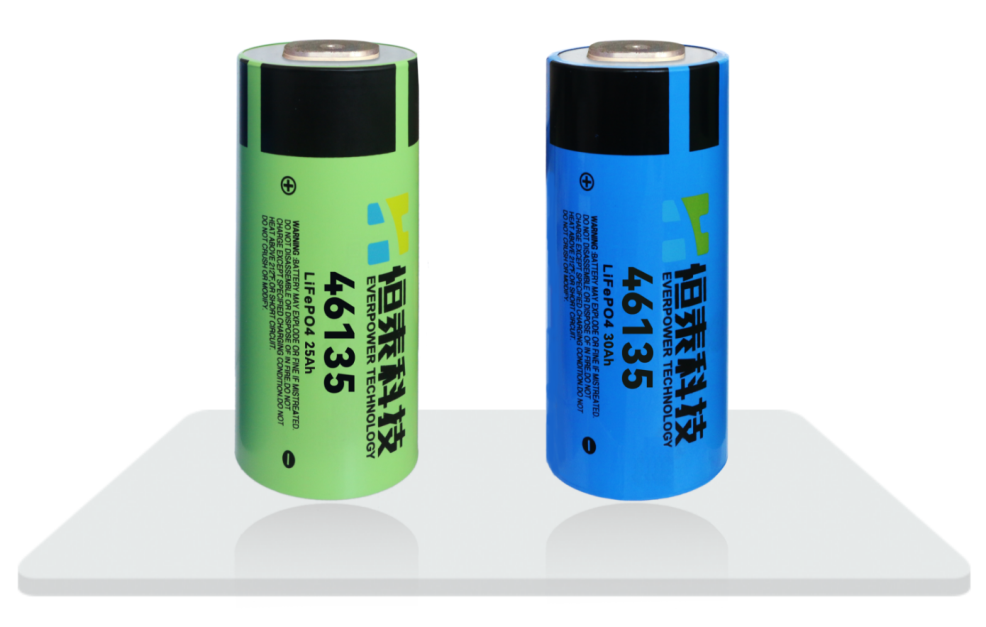

46135-25Ah長循環 Long cycle |
46135-25Ah快充 Fast charg |
|
|
內阻mΩ Internal resistance |
≤1.5 | ≤1.5 | |
|
電壓V Voltage |
3.2 | 3.2 | |
|
重量g Weight |
500±20 | 500±20 | |
|
尺寸mm (直徑*高度) Size（mm、 diameter * height) |
46*135 | 46*135 | |
|
質量能量密度
（Wh/kg） Mass energy density |
160 | 160 | |
|
充電/放電電流A Charging/ discharging current |
1C/1C 1C/2C | 2C/1C 2C/2C | |
|
常溫循環性能
(25℃，≥80%) Normal temperature cycling performance |
≥4000 | ≥3000 | |
|
充電溫度 Charge Temperature |
0℃ ~ 55℃ | ||
|
放電溫度 Discharge Temperature |
-20℃ ~ 60℃ | ||
|
儲存溫度 Storage Temperature |
-20℃ ~ 45℃ | ||
|
產品優勢 Advantages |
長循環/高安全/溫升低/大功率放電/產品一致性優異/工作溫度寬廣 long cycle life, Higher safety level, Low Temperature Rise,High c-rate charge/dischiarge, Excellent conformance, ide operating temperature |
||
|
應用場景 Market Segment |
便攜式/戶用/工商儲能電源/電動兩輪車/摩托車/三輪車/機器人/電動工具 Portable/Household/CommercialESS/ E-motor/E-bike/Electric tricycle/AGV/Power Tool |
||
PERFORMANCE DATA
|
型號/特點 Model/Feature |

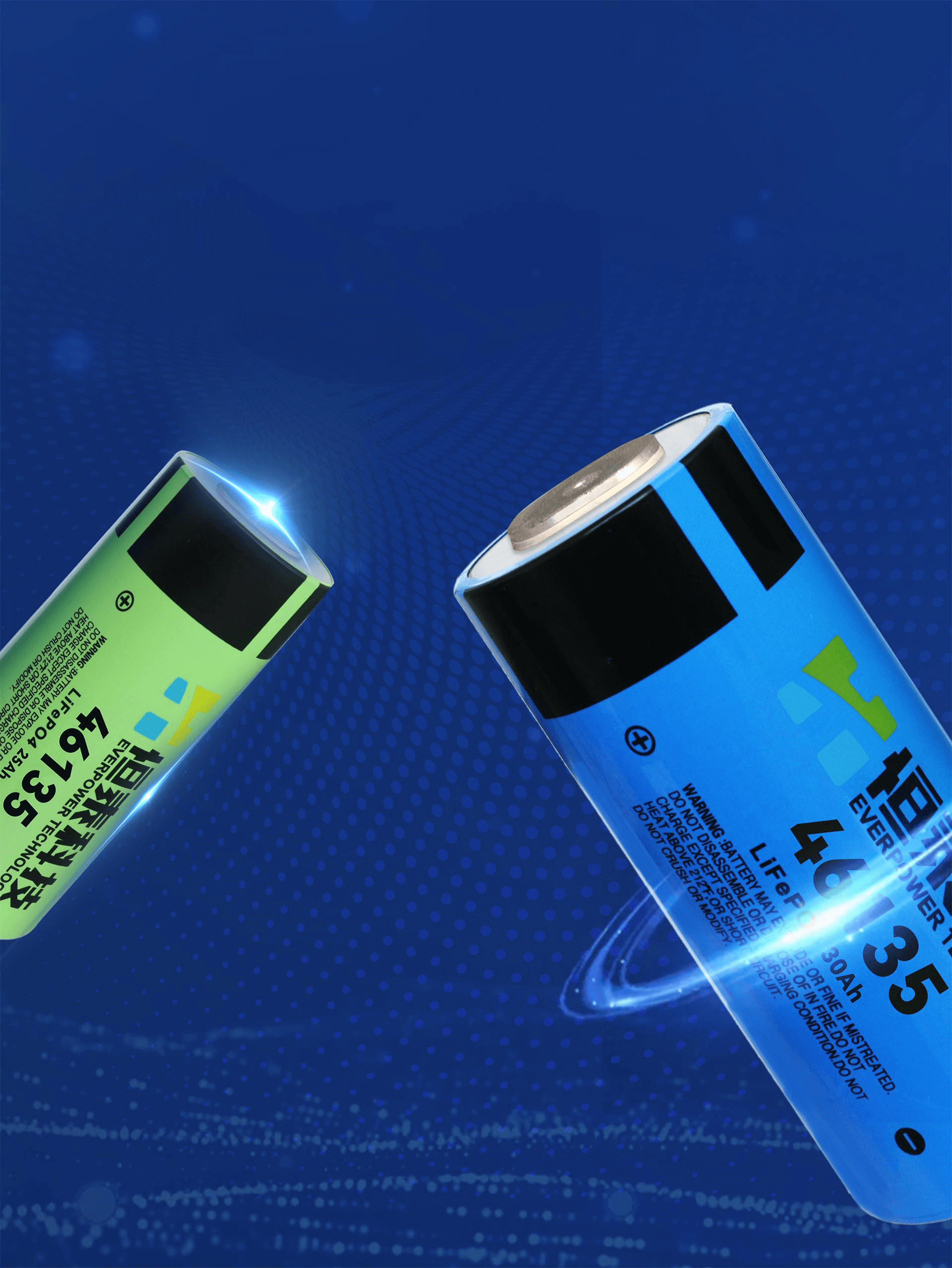

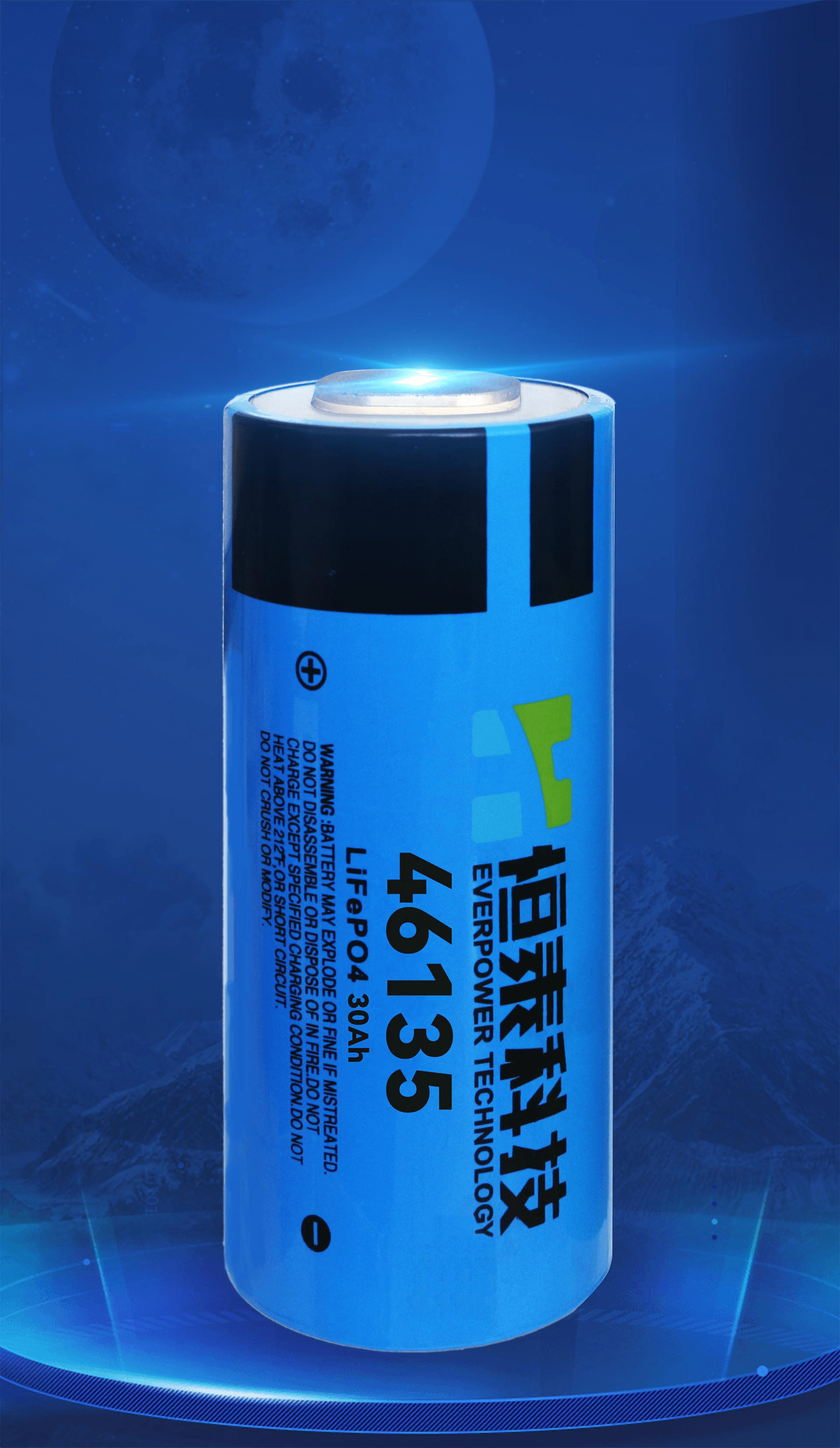

46135-30Ah長循環 Long cycle |
46135-30Ah快充 Fast charg |
|
|
內阻mΩ Internal resistance |
≤1.5 | ≤1.5 | |
|
電壓V Voltage |
3.2 | 3.2 | |
|
重量g Weight |
515±20 | 515±20 | |
|
尺寸mm (直徑*高度) Size（mm、 diameter * height) |
46*135 | 46*135 | |
|
質量能量密度
（Wh/kg） Mass energy density |
190 | 190 | |
|
充電/放電電流A Charging/ discharging current |
1C/1C 1C/2C | 2C/1C 2C/2C | |
|
常溫循環性能
(25℃，≥80%) Normal temperature cycling performance |
≥4000 | ≥3000 | |
|
充電溫度 Charge Temperature |
0℃ ~ 55℃ | ||
|
放電溫度 Discharge Temperature |
-20℃ ~ 60℃ | ||
|
儲存溫度 Storage Temperature |
-20℃ ~ 45℃ | ||
|
產品優勢 Advantages |
長循環/高安全/溫升低/大功率放電/產品一致性優異/工作溫度寬廣 long cycle life, Higher safety level, Low Temperature Rise,High c-rate charge/dischiarge, Excellent conformance, ide operating temperature |
||
|
應用場景 Market Segment |
便攜式/戶用/工商儲能電源/電動兩輪車/摩托車/三輪車/機器人/電動工具 Portable/Household/CommercialESS/ E-motor/E-bike/Electric tricycle/AGV/Power Tool |
||
